Plastic Water Meter Box (BW-718)

Quantity:
  • BW-718
  • for Water Meter and Valves
  • Waterproof
  • Flannelette
  • Water Temperature: ≤50oc
  • Yes
  • L530
  • 392690909
  • PP
  • L530
  • Partial Hard
  • L530 X W395 X T320mm
  • 100% Tested
  • bestway
  • Made in China

Product Name: L530 Plastic Water Meter Box / Water Meter Protect Box

Application:To protect water meter and valves.


Dimensions:



Height: 320mm



Width:395mm



Length: 530mm

   Description:

Material

Plastic/Nylon/ fiberglass reinforced polymerization amine
Body, with plastic accessories

APPLICATION

Measuring the volume of cold potable water passing through the pipeline

Size

DN15 to DN50

FEATURES



1.Completely plastic shell, solid and robust design, long service guaranteed.

2.High quality materials fiberglass reinforced polymerization amine,corrosion resistance.

3.Pole ring magnet polymer coating as protection against deposits.

4.The measuring mechanism can be exchanged.

5.Anti-magnet.

6.Inside calibration device.

7.Large measuring range high flow accuracy.

8.Steady curve characteristics.

9.Measuring accuracy is up to ISO4064, Class B.

10.Overload flowrate: Qs=2Qp (Qn=nominal flowrate)

WORKING CONDITION

1.Water temperature: ≤50ºC
2.Water pressure: ≤ 10bar (16 bar on request)

MAXIMUM PERMISSIBLE ERROR

1.In the lower zone from qmin inclusive up to but excluding qt is ±5%
2.In the upper zone from qt inclusive up to and including qs is ±2%

ACCESSORIES

Optional: Both brass thread connections and plastic thread connections are available.

Testing Pressure

100% tested

Samples Time

1) 5days - For our existing samples for reference

2) 15 days - If new size, need make the new mould

OEM Acceptable

 Yes

Production Capacity

100,000 pcs each month

Packing Details

inner box, out carton and pallet.

Payment Term

T/T ,L/C,,D/P,D/A,PAYPAL,WESTERN UNION

Delivery Time

20 days to 40 days after confirming the order

Minimum Order Quantity

200-3000 Pieces

Features:

1. Complete plastic, except the stainless steel screw (which steadily seals the top cover of the water meter box), no bottom cover, solid and high quality, long service guaranteed.

2. Material: PP material for box container, cover, bottom.

3.12months of warranty.

4. Resistance load is more than14.18KN

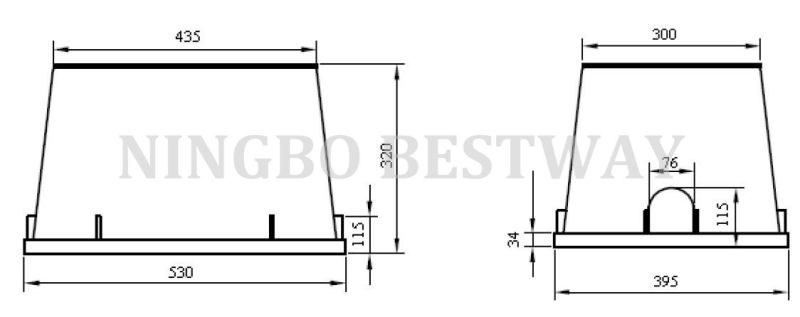

Drawings and Dimensions as follows:
Plastic Water Meter Box (BW-718)
Plastic Water Meter Box (BW-718)

For more informatin, pls don't hesitate to contact with me.
