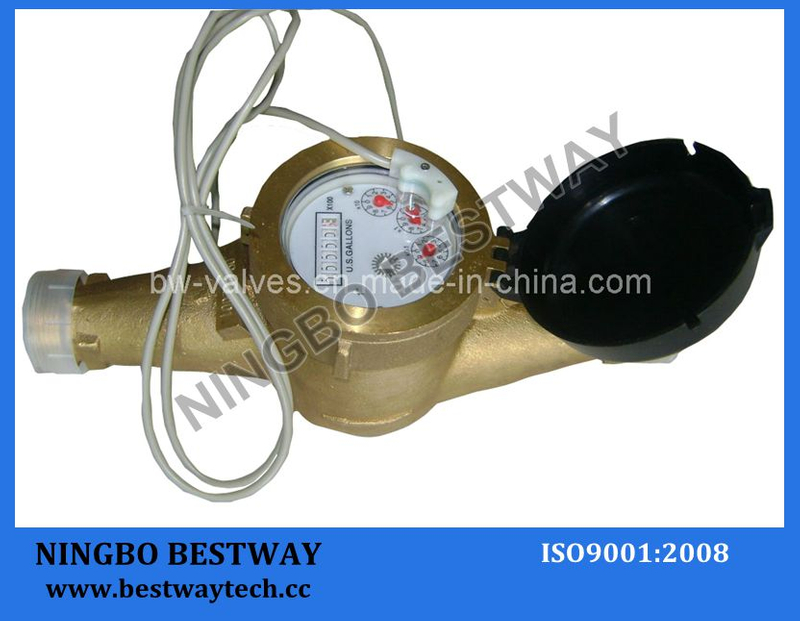

Dn15-Dn50 Multi-Jet Water Meters (LXSC-15E-50E)

Quantity:
  • LXSC-15E-50E
  • Cold Water
  • Digital
  • Civil
  • General Water Meter
  • Water Meters
  • Dn15-50
  • High Quality, Competitive Price
  • AWWA C708
  • 90282010
  • Horizontal
  • B
  • 15-50mm
  • Speed of Water Meter
  • Dry Water Meter
  • Multi-Jet
  • Brass
  • Bestway
  • china
Water meters
Multi-jet Water Meter
Material: Bronze or brass body with brass cover and brass coupling and fittings. For brass, there have low lead brass for selecting.
For Bronze: C83600, C889833
Equipped with a reed switch assembly which can be connected to remote reading systems.
U. S. Gallon (USG) for selecting.

Description:

Material

Plastic/Nylon/ fiberglass reinforced polymerization amine
Body, with plastic accessories

APPLICATION

Measuring the volume of cold potable water passing through the pipeline

Size

DN15 to DN50

FEATURES



1.Completely plastic shell, solid and robust design, long service guaranteed.

2.High quality materials fiberglass reinforced polymerization amine,corrosion resistance.

3.Pole ring magnet polymer coating as protection against deposits.

4.The measuring mechanism can be exchanged.

5.Anti-magnet.

6.Inside calibration device.

7.Large measuring range high flow accuracy.

8.Steady curve characteristics.

9.Measuring accuracy is up to ISO4064, Class B.

10.Overload flowrate: Qs=2Qp (Qn=nominal flowrate)

WORKING CONDITION

1.Water temperature: ≤50ºC
2.Water pressure: ≤ 10bar (16 bar on request)

MAXIMUM PERMISSIBLE ERROR

1.In the lower zone from qmin inclusive up to but excluding qt is ±5%
2.In the upper zone from qt inclusive up to and including qs is ±2%

ACCESSORIES

Optional: Both brass thread connections and plastic thread connections are available.

Testing Pressure

100% tested

Samples Time

1) 5days - For our existing samples for reference

2) 15 days - If new size, need make the new mould

OEM Acceptable

 Yes

Production Capacity

100,000 pcs each month

Packing Details

inner box, out carton and pallet.

Payment Term

T/T ,L/C,,D/P,D/A,PAYPAL,WESTERN UNION

Delivery Time

20 days to 40 days after confirming the order

Minimum Order Quantity

200-3000 Pieces

All technical figures are conformed with AWWA C708 Stanadard and ISO 4064 B class
Good for USA Market

For more details, please feel free to contact me. Your message will be answered within 24 hours.
