MJ-SDC
Bmag
9028201000
We have brass, iron and plastic water meter, and full range water meter parts. Meter types include multi-jet, single-jet, AWWA standard meter, dry type and wet type meters etc. Water meter parts include body, cover, fitting etc. Best quality and competitve price.
Multi-jet: 15-50mm, dry and wet type, inside adjustment, outside adjustment, remote-reading water meter
Single-jet: 13mm-40mm. Remote-reading water meter
Plastic meter: Inside adjustment and outside adjustment.
AWWA meter: PD, PME, PMN types.

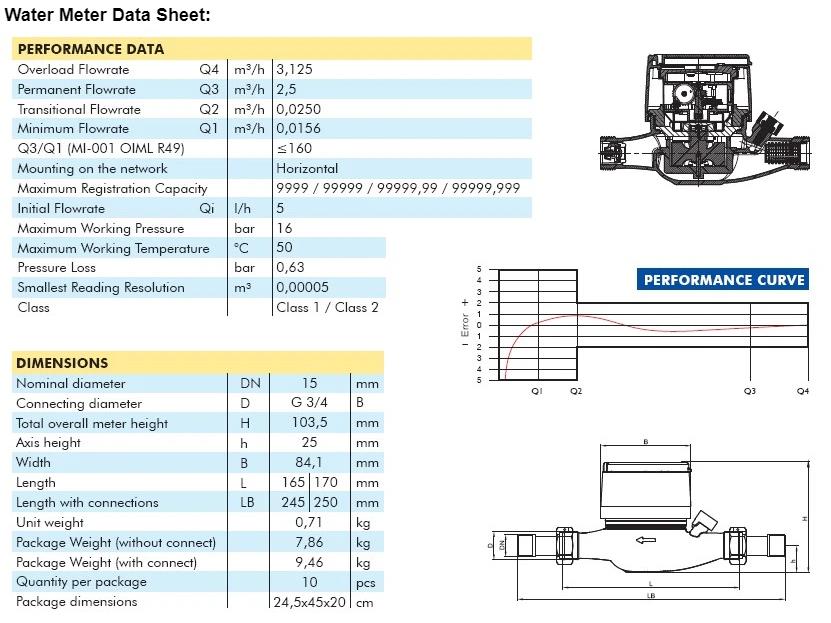

Following is Multi-jet water meter specification.
Features:
360 degree Dry type. Magnetic drive, pointer-roller indicator, easy and long term clear reading, frost resistance, long working lift etc. Available with anti-magnet and remote output life etc. Available with anti-magnet and remote output system by pulse on request.
1. Technical data conform to international standard ISO4064.
2. Available in hot water meter, the main technical data refer to cold potable water meter.
Description:
| Material | Plastic/Nylon/ fiberglass reinforced polymerization amine Body, with plastic accessories |
| APPLICATION | Measuring the volume of cold potable water passing through the pipeline |
| Size | DN15 to DN50 |
| FEATURES | 1.Completely plastic shell, solid and robust design, long service guaranteed. 2.High quality materials fiberglass reinforced polymerization amine,corrosion resistance. 3.Pole ring magnet polymer coating as protection against deposits. 4.The measuring mechanism can be exchanged. 5.Anti-magnet. 6.Inside calibration device. 7.Large measuring range high flow accuracy. 8.Steady curve characteristics. 9.Measuring accuracy is up to ISO4064, Class B. 10.Overload flowrate: Qs=2Qp (Qn=nominal flowrate) |
WORKING CONDITION | 1.Water temperature: ≤ 40degree for cold potable water meter ≤ 90degree for hot water meter 2.Water pressure: ≤ 10bar (16 bar on request) |
| MAXIMUM PERMISSIBLE ERROR | 1.In the lower zone from qmin inclusive up to but excluding qt is ±5% 2.In the upper zone from qt inclusive up to and including qs is ±2% |
| ACCESSORIES | Optional: Both brass thread connections and plastic thread connections are available. |
| Testing Pressure | 100% tested |
| Samples Time | 1) 5days - For our existing samples for reference 2) 15 days - If new size, need make the new mould |
| OEM Acceptable | Yes |
| Production Capacity | 100,000 pcs each month |
| Packing Details | inner box, out carton and pallet. |
| Payment Term | T/T ,L/C,,D/P,D/A,PAYPAL,WESTERN UNION |
| Delivery Time | 20 days to 40 days after confirming the order |
| Minimum Order Quantity | 200 Pieces |
We have brass, iron and plastic water meter, and full range water meter parts. Meter types include multi-jet, single-jet, AWWA standard meter, dry type and wet type meters etc. Water meter parts include body, cover, fitting etc. Best quality and competitve price.
Multi-jet: 15-50mm, dry and wet type, inside adjustment, outside adjustment, remote-reading water meter
Single-jet: 13mm-40mm. Remote-reading water meter
Plastic meter: Inside adjustment and outside adjustment.
AWWA meter: PD, PME, PMN types.
Following is Multi-jet water meter specification.
Features:
360 degree Dry type. Magnetic drive, pointer-roller indicator, easy and long term clear reading, frost resistance, long working lift etc. Available with anti-magnet and remote output life etc. Available with anti-magnet and remote output system by pulse on request.
1. Technical data conform to international standard ISO4064.
2. Available in hot water meter, the main technical data refer to cold potable water meter.
Description:
| Material | Plastic/Nylon/ fiberglass reinforced polymerization amine Body, with plastic accessories |
| APPLICATION | Measuring the volume of cold potable water passing through the pipeline |
| Size | DN15 to DN50 |
| FEATURES | 1.Completely plastic shell, solid and robust design, long service guaranteed. 2.High quality materials fiberglass reinforced polymerization amine,corrosion resistance. 3.Pole ring magnet polymer coating as protection against deposits. 4.The measuring mechanism can be exchanged. 5.Anti-magnet. 6.Inside calibration device. 7.Large measuring range high flow accuracy. 8.Steady curve characteristics. 9.Measuring accuracy is up to ISO4064, Class B. 10.Overload flowrate: Qs=2Qp (Qn=nominal flowrate) |
WORKING CONDITION | 1.Water temperature: ≤ 40degree for cold potable water meter ≤ 90degree for hot water meter 2.Water pressure: ≤ 10bar (16 bar on request) |
| MAXIMUM PERMISSIBLE ERROR | 1.In the lower zone from qmin inclusive up to but excluding qt is ±5% 2.In the upper zone from qt inclusive up to and including qs is ±2% |
| ACCESSORIES | Optional: Both brass thread connections and plastic thread connections are available. |
| Testing Pressure | 100% tested |
| Samples Time | 1) 5days - For our existing samples for reference 2) 15 days - If new size, need make the new mould |
| OEM Acceptable | Yes |
| Production Capacity | 100,000 pcs each month |
| Packing Details | inner box, out carton and pallet. |
| Payment Term | T/T ,L/C,,D/P,D/A,PAYPAL,WESTERN UNION |
| Delivery Time | 20 days to 40 days after confirming the order |
| Minimum Order Quantity | 200 Pieces |
