Product Name: Brass Water Meter Gate Valve/Brass Gate Valve for Water Meter Description: Brass Water Meter Gate Valve/Brass Gate Valve for Water Meter with Forged brass body, brass stem. brass wedge, coupling end and iron handwheel. Size: DN20*3/4"*3/4" , DN20*3/4"*1" (Customed-made design are acceptable) Material: Brass (C37700, MS58(CuZn40Pb2), CuZn39Pb3, CW602N C2121 CW614N) Technical standard: Nominal pressure: 1.6Mpa. Working Medium: Water non-causticity liquid saturated steam Working Temperature: -10 to 110° C Thread Standard: ISO228 Package details: Each valve by poly bag, inner box, Cartons with pallets

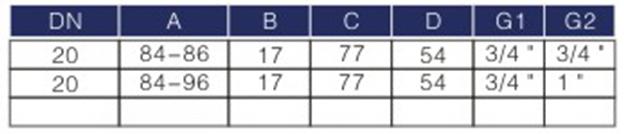

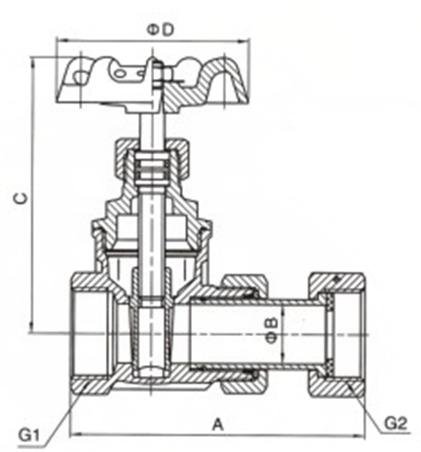

Drawing as follows:
In order to quote you the best price timely, please kindly provide the following information in your inquiry:
1) Product details: dimensions
2) Order quantity
3) Attached drawings if customized
4) Any special packing, delivering or other requirements
If you are not sure about any specifics of the product you need, please feel free to contact with us and we are more than happy to help.
