Gumetal Self Tapping Ferrule Straps

  • BW-F10
  • Female
  • Round
  • Ningbo Bestway
  • China
  • Bronze/Gunmetal
  • Without Treatment
  • 1/2" X 100mm to 1" X 160mm
  • 1/2" x 100mm to 1" x 160mm
  • 8481804090

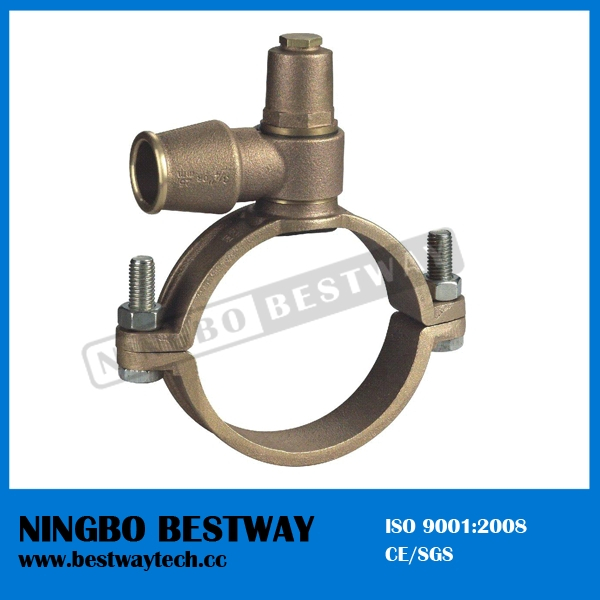

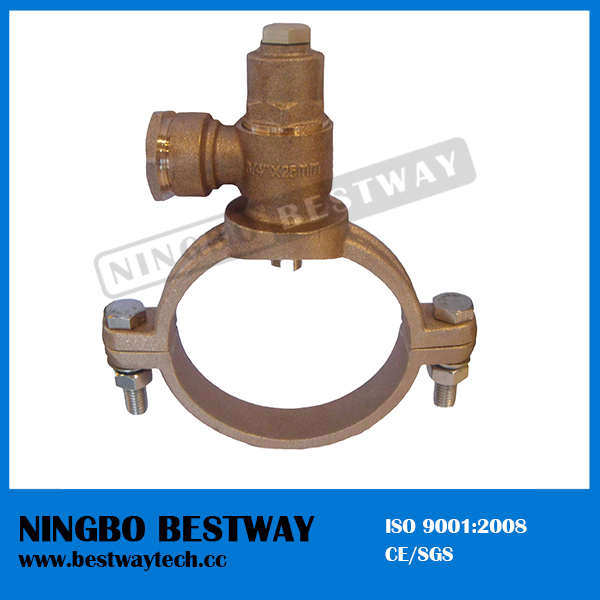

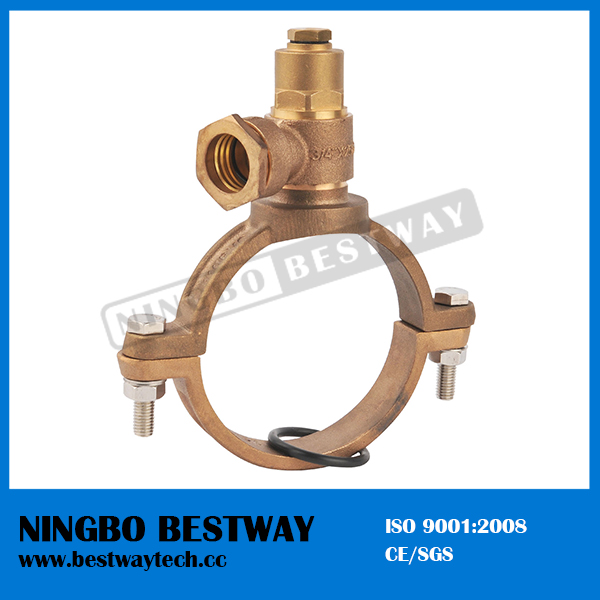

 Gunmetal Self-Tapping Ferrule Straps
Product Name: Gunmetal /Bronze Self-Tapping Ferrules/Gunmetal Self-Tapping Ferrule Straps/Gunmetal Self-Tapping Saddle Straps

Description: Gunmetal /Bronze Self-Tapping Ferrules/Gunmetal /Bronze Self-Tapping Ferrule Straps/Gunmetal Self-Tapping Saddle Straps with gunmetal LG2 ferrule and Saddle Body which for permanent service line connections to PVC water mains.

Ferrule stem in bronze with integral aluminum bronze or stainless steel cutter, gunmetal banjo with push fit connection for HDPE pipe. Gunmetal top and EPDM or equivalent sealing washers.

Ferrule Straps with top and bottom half made of cast gunmetal to BS1400 LG2 cast, with A2 Grade stainless steel bolts and M12 nuts and FPDM rubber 'O' rings seal under boss.

Technical Specifications:

Ferrule and Saddels Body: Gunmetal LG2/ASTM B62 and ASTM B584-UNS NO C83600 for optimal corrosion resistance.

Gaskets and O-ring: EPDM Rubber per ASTM D2000

Integral Self-cutter: Aluminum bronze or stainless steel

Bolts and Nuts: Type 304 Staniess Steel

Size for Ferrules: 1/2"x 20mm, 3/4"x 25mm, 1"x 32mm, 2" x 63mm

Size for Saddle/Straps: 2"-8"(DN63mm -DN225mm)

Simple and quick installation can be made dry or under pressure.

We also have brass self-tapping ferrules with saddle for your selection.
Gumetal Self Tapping Ferrule Straps

Package details:  Cartons with Pallets

In order to quote you the best price timely, please kindly provide the following information in your inquiry:

1) Product details: dimensions,material

2) Order quantity

3) Attached drawings if customized

4) Any special packing, delivering or other requirements

If you are not sure about any specifics of the product you need, please feel free to contact with us and we are more than happy to help.
