Dn20-Dn63mm Brass PPR Ball Valve

  • BW-B63
  • Thread
  • Fixed Ball Valve
  • 1/2"-1"
  • 1/2", 3/4", 1"
  • 8481804090
  • Brass
  • Straight Through Type
  • Fixed Ball Valve
  • Bestway
  • China

Product name: Brass PPR Ball Valves/Brass Ball Valves/PPR Ball Valve

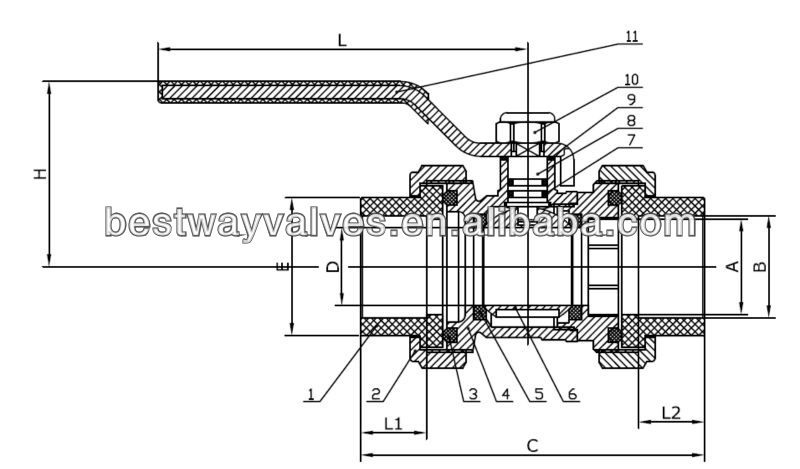

Description: Brass PPR Ball Valves with Nickel or Chrome plated forged brass body, brass bonnet, Chrome brass ball, PTFE Ball seat,telfon vibration proof handle nut and flat steel handle. And full port.

Application: Connction of pex pipe for water supplying

Material: Brass (CuZn39Pb3, CW617N,CW614N. no lead Brass)

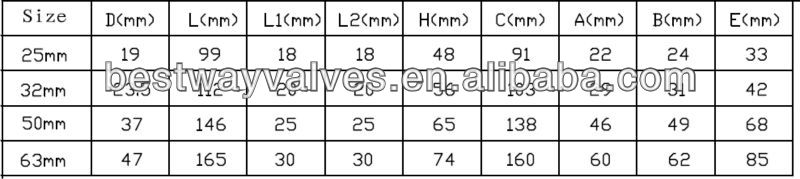

Size: 20 x 20mm, 25 x 25mm, 32 x 32mm, 40 x 40mm, 50 x 50mm, 63 x 63mm

Standard Specifications:

Working Pressure: PN16

Testing pressure: 0.8MPa by air

Working temperature: -20° C≤ T≤ 120° C

Working Media: Water, Steam, Oil etc
Dn20-Dn63mm Brass PPR Ball Valve
Dn20-Dn63mm Brass PPR Ball Valve
Dn20-Dn63mm Brass PPR Ball Valve
For more information about this product, pls don't hesitate to contact with us any time.
