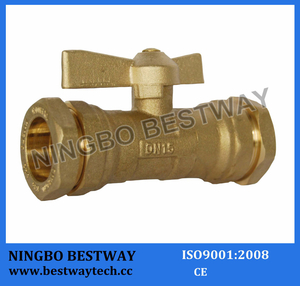

Brass Water Meter Ball Valve

Quantity:
  • BW-B62
  • Thread
  • Fixed Ball Valve
  • Water Industrial Usage
  • Ningbo Bestway
  • China
  • Brass
  • Straight Through Type
  • Fixed Ball Valve
  • Dn15*25*25mm
  • DN15*25*25mm
  • 8481804090

Product Name: Brass Water Meter Ball Valve/Brass Lockable Ball Valve/Brass Lockable Water Meter Ball Valve

Description:
Brass Water Meter Ball Valve/Brass Lockable Ball Valve/Brass Lockable Water Meter Ball Valve with brass forged body, brass ball, brass stem,compression ends and brass handle. For water meter filled with gripping ring to allow direct connection HDPE/PVC pipes.

Application: House connection and drinking meter networks.

Material: Brass (CZ122, CuZn39Pb3, CW617, CW614 and so on)

Size:
DN15*25*25mm (Customed are acceptable)

Technical Specification:

Working pressure: 1.6Mpa

Tested Pressure: 2.0Mpa

Working medium: Water, oil, gas

Working temperature: -20° C≤ T≤ 150° C

Thread standard: ISO228  (BSP, NPT etc)

Package details: Each valve by poly bag, inner box, Cartons with pallets. (Package as per client's requirements are acceptable)
Brass Water Meter Ball Valve
Brass Water Meter Ball Valve

In order to quote you the best price timely, please kindly provide the following information in your inquiry:

1) Product details: dimensions

2) Order quantity

3) Attached drawings if customized

4) Any special packing, delivering or other requirements

If you are not sure about any specifics of the product you need, please feel free to contact with us and we are more than happy to help.
